KleenCut Supported Shear, Tube Re-Cut Machine
KleenCut Support Shear Benefits
Consider the KleenCut Supported Shear Process for the Following Conditions:
- High Production – High Speed Cut-Off – Fully Automatic
- No material loss between cut pieces
- Commercially burr-free, with little to no distortion
- Shorter cut length applications
- Heavier wall applications than Dual-Blade Shear
- Carbon Steels, Stainless Steels, HSLA, Non-Ferrous
To learn more about the KleenCut Machines, click here.

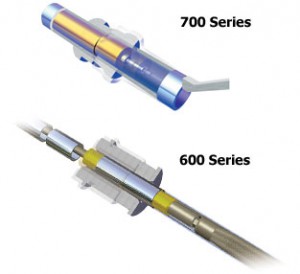

KleenCut Machine Models
KleenCut™ 600 Series (Cut Lengths Under 12.00”/305mm)
Model 620
For Tube O.D. size range: 0.50”-2.00” (13mm-51mm) click here for more info
Model 640
For Tube O.D. size range: 0.50”-4.00” (13mm-102mm) click here for more info
KleenCut™ 700 Series (Cut Lengths Under 24”/610mm)
Model 725
For Tube O.D. size range: 0.50”-2.50” (13mm-64mm) click here for more info
Model 740
For Tube O.D. size range: 1.00”-4.00” (25mm-102mm) click here for more info
| Cutting Capacity | Max. Wall Thickness | Controls | Cut tube Lengths (Min -Max.) |
Length Control Options |
|||
|---|---|---|---|---|---|---|---|
| Model 620 Back to top of page |
.375″ ID – 2″ OD (9.5mm – 51mm) |
20% of Diameter | Allen Bradley Rexroth (other available) |
Programmable (servo) up to 10.0″ (254mm) |
Feed from Coil or Stick Hitch Feed Servo |
||
| Model 640 Back to top of page |
.375″ ID – 4″ OD (9.5mm – 102mm) |
20% of Diameter | Allen Bradley Rexroth (other available) |
Programmable (servo) up to 14″ (305mm) |
Feed from Coil or Stick Hitch Feed Servo |
||
| Model 725 Back to top of page |
.75″ ID – 2.5″ OD (19mm – 63.5mm) |
8% of Diameter | Allen Bradley Rexroth (other available) |
Programmable (servo) up to 24″(610mm)(target) |
Target Lead Screw Manual Target Quick Change Servo Hitch Feed Servo |
||
| Model 740 Back to top of page |
.75″ ID – 4″ OD (19mm – 102mm) |
8% of Diameter | Allen Bradley Rexroth (other available) |
Programmable (servo) up to 24″(610mm)(target) |
Target Lead Screw Manual Target Quick Change Servo Hitch Feed Servo |
||
Industries Using KleenCut Supported Shear and Tube Re-Cut Machines
Haven Manufacturing’s KleenCut supported shear and tube re-cut machines are trusted across a wide range of industries for their precision, efficiency, and burr-free cutting capabilities. These innovative systems are designed to meet the diverse demands of modern manufacturing, delivering high-quality tube processing solutions.
In the automotive industry, KleenCut machines are essential for producing precise tubes used in exhaust systems, fuel lines, and air bag components. Their ability to handle various materials, like mild steel and aluminum, ensures reliable performance for high-volume production. The aerospace sector relies on KleenCut for cutting tubes in hydraulic systems and structural components, where accuracy and minimal material loss are critical. HVAC manufacturers benefit from the technology to create tubing for heating and cooling systems, ensuring clean cuts for seamless assembly.
The medical industry uses KleenCut for producing tubes in devices like surgical instruments and diagnostic equipment, where burr-free cuts are vital for safety and functionality. In the furniture and storage sectors, these machines help fabricate metal frames and shelving, offering flexibility for various shapes and sizes. Additionally, the health and fitness industry employs KleenCut for manufacturing equipment like treadmill frames, valuing the quick changeover for small production runs. Lastly, the appliance industry utilizes these machines for components in refrigerators and washing machines, appreciating the reduced need for secondary finishing.
Discover how Haven Manufacturing’s KleenCut technology can elevate your tube cutting processes—contact us today for a quote!
